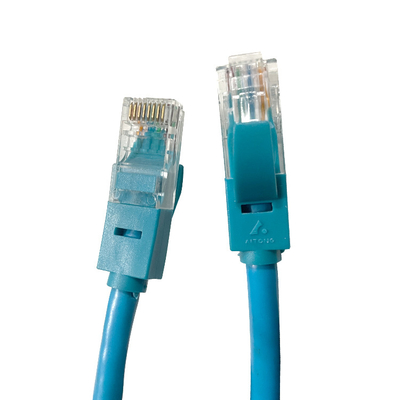

Gigabit Ethernet Cat6 U/UTP Rj45 1m cat6 fiber optic LAN cable patch cord

1. The six types of network cables adopt 23AWG pure oxygen-free copper as the conductor, which has the characteristics of oxidation resistance and long service life;

2. The cross skeleton structure reduces crosstalk between line pairs, and its (NEXT) near-end crosstalk performance index is 5-10dB higher than that of the CAT-5E without skeleton structure in the range of 1-100mhz;

3. The six types of network cables have low attenuation, small crosstalk, high ratio of attenuation to crosstalk (ACR), Low structural return loss, small delay error and better performance.Compared with the five types of cable, the six types of network cable can meet the short-range ten gigabit Ethernet;

4. The six types of network cables can be divided into unshielded twisted pair (U/UTP) and shielded twisted pair (U/FTP, F/UTP, SF/UTP, SF/FTP).Shielded twisted pair greatly reduces radiation and signal interference.Shielded twisted pair is more expensive than unshielded twisted pair and more difficult to install.
