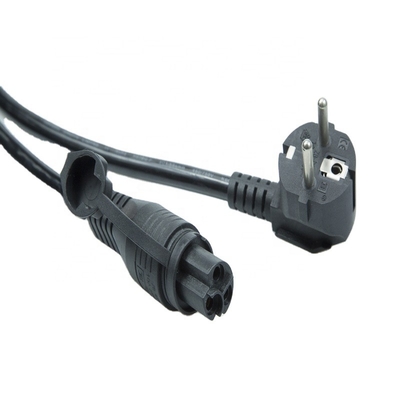

CE approved EU to Defa plug extension cord for Car heating 16A / 250V rated | ||||||||||||||||||
Harmonized cable | Cable Construction - Fine bare or tinned copper strands - Strands to Class-5, IEC 60228 - Rubber compound insulation - Conductors stranded in layers with optimal lay-length - Green-yellow earth core in the outer layer - Polyurethane/PUR outer jacket orange | |||||||||||||||||
H07BQ-F 3G1.5mm2 | ||||||||||||||||||
Application and Description These cables are used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due to its contact with hot surfaces. H07BQ-F can commonly be found in other machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion, notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation, hydrolysis and microbes.s. | ||||||||||||||||||
Technical Characteristics - Working voltage:450/750 volts(H07BQ-F) - Test voltage:2500 volts(H07BQ-F} - Flexing bending radius: 5 x Ø - Fixed bending radius: 3 x Ø -Flexing Temperature: -40º C to +80º C - Fixed Temperature: -50º C to +90º C - Short circuit Temperature: +250º C - Flame retardant: IEC 60332.1 - Insulation resistance: 20 MΩ x km | ||||||||||||||||||
