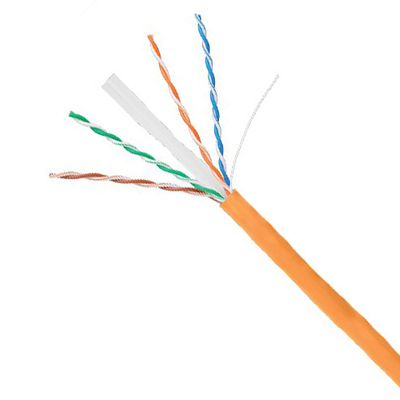

UTP CAT6 solid | |||||
Conductors | 23 AWG Solid Bare Copper | ||||
Insulation | 0.96MM HDPE | ||||
Pair Color | P1:Blue & White P2:Orange & White P3:Green & White P4:Brown & White | ||||
Jacket | 6.4MM PVC or LSZH | ||||
Separator | Divider | ||||
Package | 305M/1000ft, Wooden Reel, Carton, Pallet | ||||
Delivery time | Normally 25 days after received the deposit. | ||||
Application | - IEEE 802.3-IEEE802.5 - FDDI - ATM - RNIS |
Conductor resistance at 20° C (max.) | 98,6 Ω/km | |||
Dielectric strength at 50 Hz | 1 kV/1min | |||
Insulation resistance (min.) | 5000 MΩ/km | |||
Velocity (nom.) | 66% | |||
Characteristic impedance | 100 +/-15 Ω (1 to 100 MHz) | |||
Mutual capacitance (nom) | <55 pF/m. | |||
Propagation delay skew | <20 ns/100m | |||
Temperature rating (°C) Installation Operation | 0 to +50 -20 to +60 |
