Introduction
Conductor: 23AWG Solid Copper
Insulation: Polyethylene with color marking on white cores to ease identification
Colour Code: White/Blue-Blue,White/Orange-Orange,White/Green-Green,White/Brown-Brown
Outer Jacket: PVC, Leaded and Lead-free as well as LSZH versions available
Nominal Diameter 6.0+/- 0.5mm.
Additional Components: Cable is supplied with ripcord.
Printing: Sheath printed Black with Legend as per customer requirement
II.Mechanical Characteristics:
Maximum Pulling Force: 80N
Minimum Bending Radius: 55MM
Nominal Weight: 45KG/KM
Operating Temperature: -15Deg C ~ +70 Deg C
Installation Temperature: +5 Deg C ~ +40 Deg C
Fire Performance: IEC332.1, VW1, IEC332.3 versions available depending on Jacket Type
Product Lengths: 305m standard, 500m, 1000m on request.
Specification of cat6 network cable
|
Frequency (MHz) |
Character impedance(ohm) |
Echo Loss(Db)) |
Attenuation (dB/100) |
Near-end crosstalk (dB/100m) |
Equivalent far-end Crosstalk(dB/100m) |
|
0.772 |
100±15
|
19.4 |
1.6 |
76.0 |
70.2 |
|
1.0 |
20.0 |
1.8 |
74.3 |
68.0 |
|
|
4.0 |
23.0 |
3.7 |
65.3 |
56.0 |
|
|
8.0 |
24.5 |
5.3 |
60.8 |
49.9 |
|
|
10.0 |
25.0 |
5.9 |
59.3 |
48.0 |
|
|
16.0 |
25.0 |
7.5 |
56.2 |
43.9 |
|
|
20.0 |
25.0 |
8.4 |
54.8 |
42.0 |
|
|
25.0 |
24.3 |
9.5 |
53.3 |
40.0 |
|
|
31.25 |
23.6 |
10.6 |
51.9 |
38.1 |
|
|
62.5 |
21.5 |
15.4 |
47.4 |
32.1 |
|
|
100.0 |
20.1 |
19.8 |
44.3 |
28.0 |
|
|
200.0 |
18.0 |
29 |
39.8 |
22.0 |
|
|
250.0 |
17.3 |
32.8 |
38.3 |
20.0 |

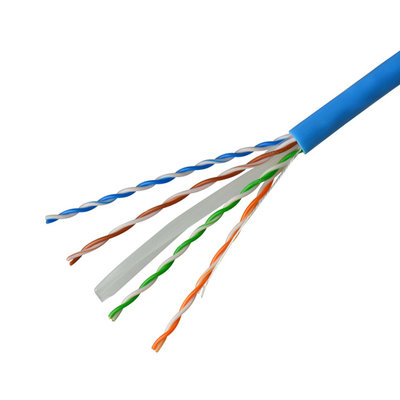

Product show
Packing &delivery
1) Length:305m/roll, other length is available according to clients request.
2) Packing: Easy pull color box+outer carton
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T
Company Introduction
Area 8000 m²
Number:100
( Including 10 technical personnel)
Our company was established in 2002 and is a professional manufacturer of Lan cable, patch cord cable, fiber optic cables, coaxial cables, alarm cable, telephone cables, power cables, fiber patch cord s, connectors and accessories.
Our total manufacturing area is 8000 square meters, with a lot of equipment, such as high speed cross product lines, high speed cross supervisor data return line systems and a cat6 twister system.
Our products strictly adhere to ISO9001, CE and ROHS international standards, also covering our design, development, service and management. We have more than 100 employees, including 10 technical personnel. Our annual production value reaches USD 2000,000,000, giving us stable development and increased competitive power within the markets.
ADP enterprise has been and will always be committed to the development and promotion of independent brands.
Main Markets
South America, Russia, Mid East, Eastern Europe, Africa
We also attend the canton fair twice one year.
